  • tunnel car washing machine

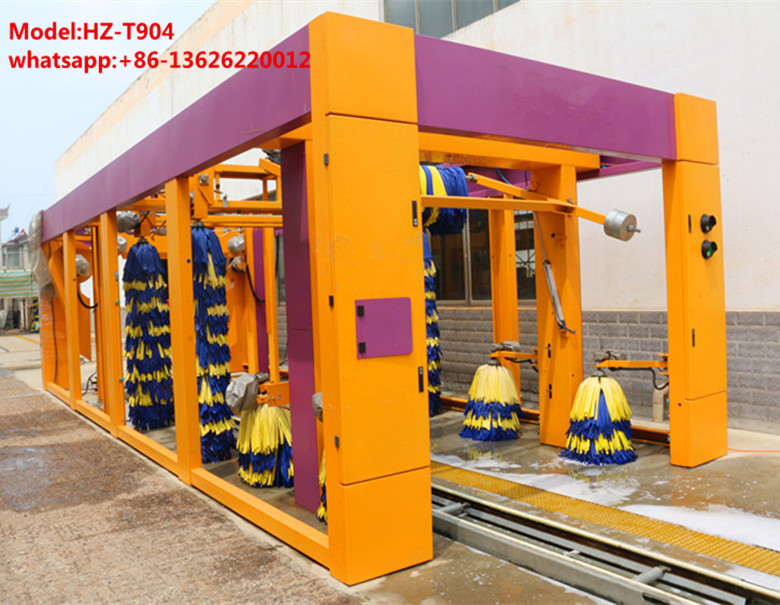

  • Tunnel car washing machine

    Model:HZ-T904

    Product function:

    This car washing machine is suitable for the small and medium size vehicle to high pressure water washing, wax, drying, chassis cleaning and wax.

    Product features:

    1. Main components are high reliability with long service life.

    2. Automatic control and multi-function operation, such as washing, drying and wax.

    3. Tunnel type structure is safe and good view. (Glass wall is optional)

    4. High pressure water system clean the vehicle all direction.

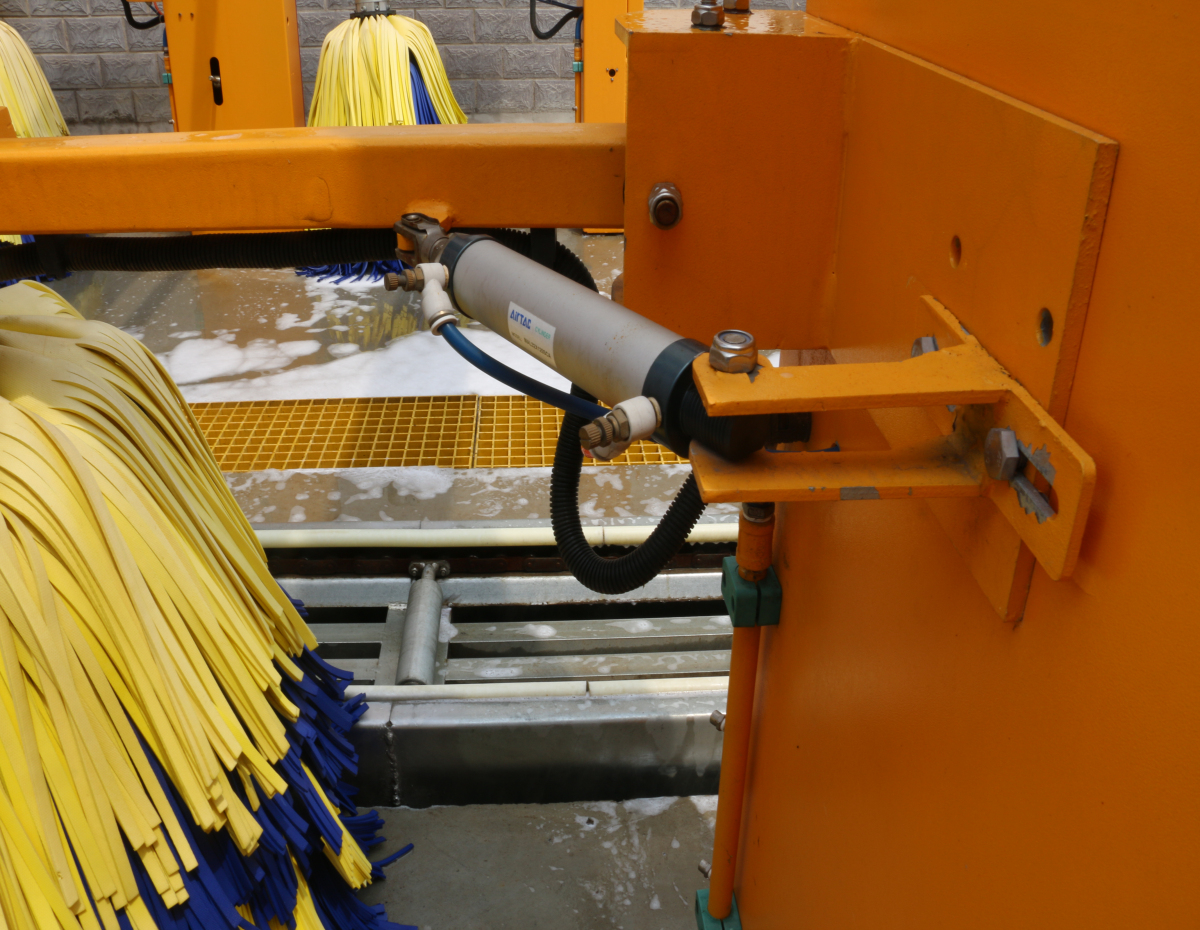

    5. Small side brushes for wheel cleaning and chassis cleaner.

    6. foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times.

    7. Dried by strong fans, to make the car dry rapidly.

    8. Water recycling system optional to protect environment and save water.

    Technical data:

    Machine size:12800x3800x3200mm (L x W x H)

    Washable car size:1900x2000mm (L x W x H)

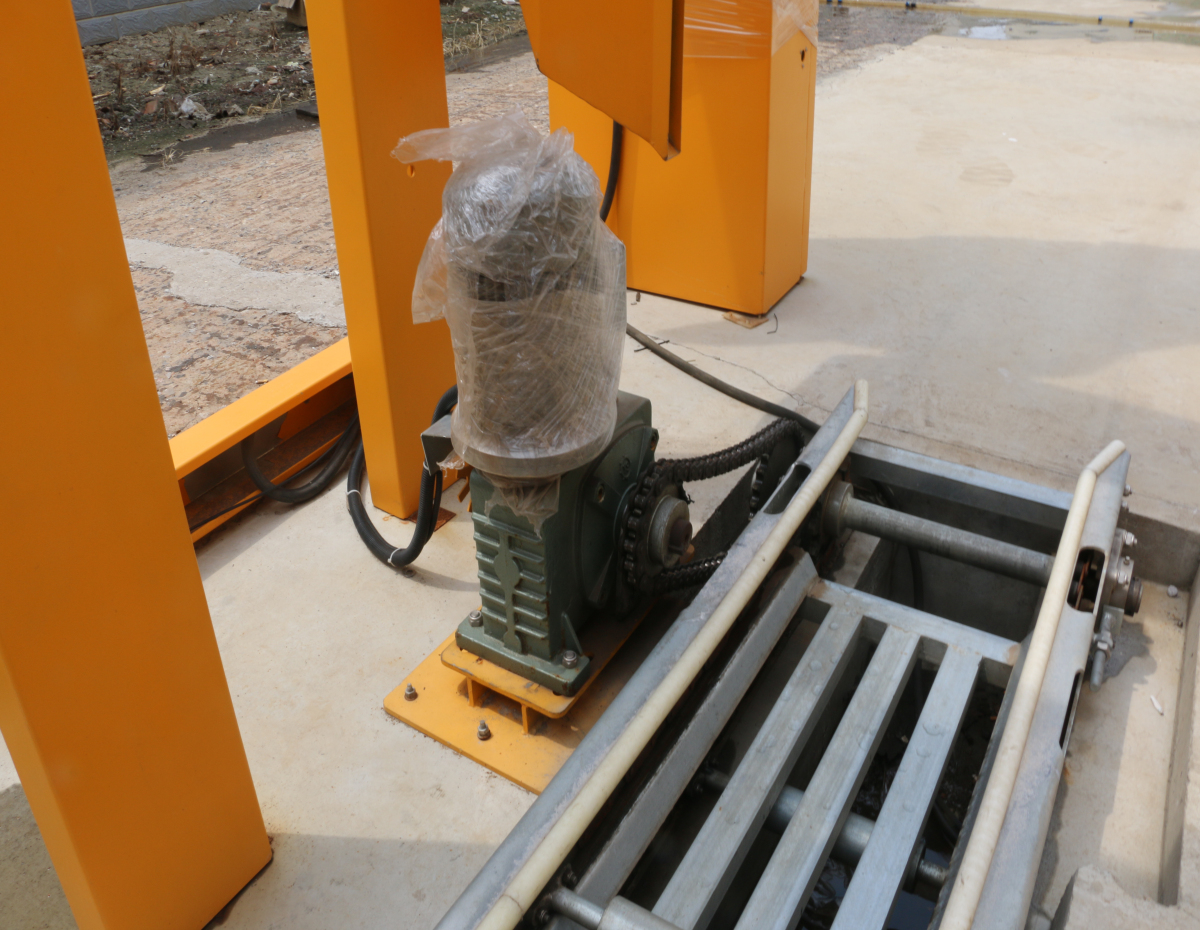

    Conveyor speed: 5-6m/min

    Washing capacity:50-60 cars per hour

    Water consumption:   120-150 liters per car

    Power supply & consumption: 380V, 50Hz, 3Phase, 26Kw

    Compress air supply:  0.8Mpa
